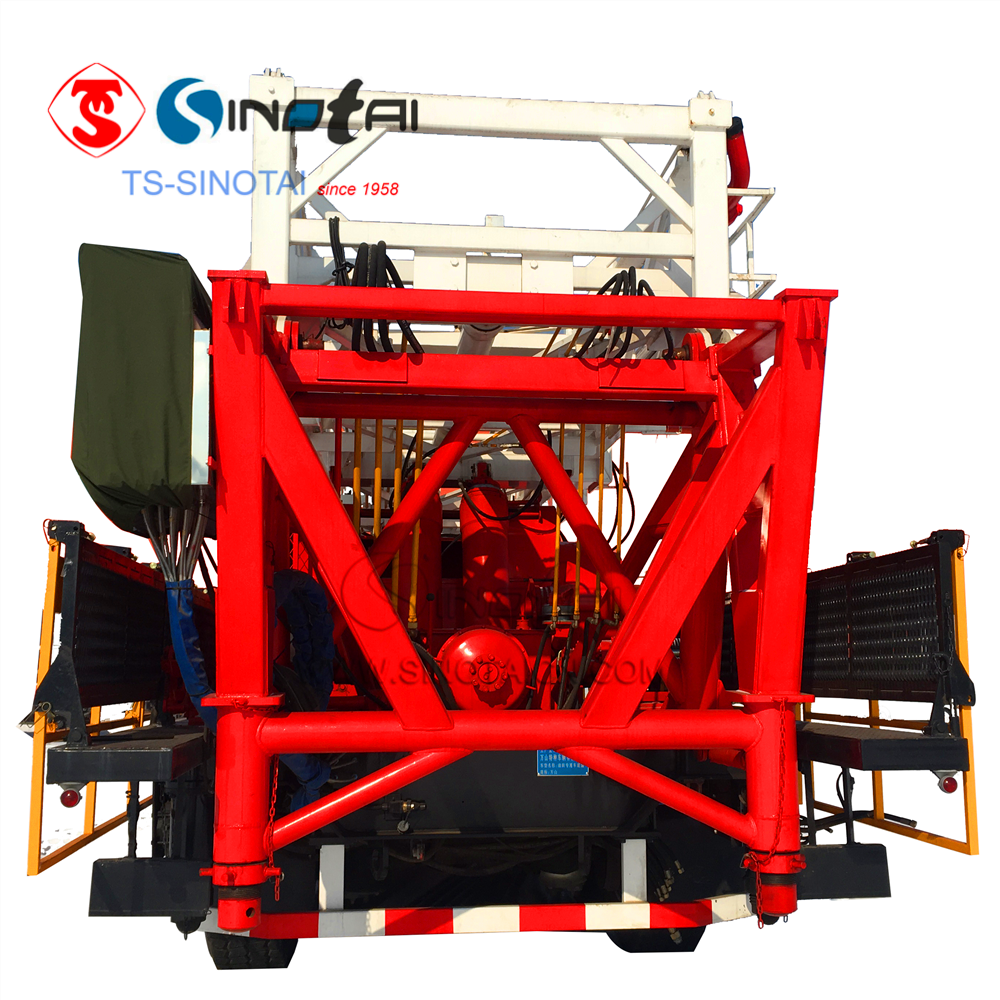

SINOTAI XJ750 TRUCK-MOUNTED DRILLING & WORKOVER RIG

  • SINOTAI XJ750 TRUCK-MOUNTED DRILLING & WORKOVER RIG
  • SINOTAI XJ750 TRUCK-MOUNTED DRILLING & WORKOVER RIG
  • SINOTAI XJ750 TRUCK-MOUNTED DRILLING & WORKOVER RIG
  • SINOTAI XJ750 TRUCK-MOUNTED DRILLING & WORKOVER RIG

SINOTAI XJ750 TRUCK-MOUNTED DRILLING & WORKOVER RIG

    Unit Price: 950000~1050000 USD
    Min. Order: 1 Set/Sets
    Packaging: STANDARD EXPORT PACKAGE
    Productivity: 240SETS/YEAR
    Brand: SINOTAI
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Supply Ability: 240Sets / Year
    Certificate: API Q1, API 4K, API 7K, API 8C
    HS Code: 843041
    Port: TIANJIN,SHANGHAI,DALIAN

Basic Info

Model No.: XJ750

Product Description

SINOTAI XJ750 TRUCK-MOUNTED DRILLING & WORKOVER RIG

Product Description

XJ750 (150t)workover & drilling rig

XJ750 (150t)workover& drilling rig is one of the best selling, high power, self- propelled rig . The rig adopts 14x8 driven type chassis, double Caterpillar engine and Allission transmission, and double drum draw-works. Max. hook load is 1700KN. The rig equipped with rotary table, platform, and swivel etc.Continuous pumping truck


Highlight

1.Adopts double section hydraulic lifting, flexible mast, the height is 38m.


2.Equipped with double CAT C15 ACERT AIII engine and Allission M5620HR transmission. The performance is stable and reliable.


3.The driven model of self-propelled chassis is 14x8. Single cab. With heater.
The main drum clutch adopts ATD330H airbag disc type, and bailing drum clutch is ATD124H airbag disc type.


4.Compound transfer case adopts seven axle parallel transmission.


5.Rotary table transmission can make the rotary table 5 forward 5 reverse.


6.All pneumatic pipelines adopt FESTO quick-coupling and pipeline.


7.Meter system adopts 24V DC, and lighting system supplied power by external AC power.


specifications

Description
XJ750(150t)
Workover depth
Φ73mm (2 7/8"upset tubing)
m
-


Service depth
Φ73mm( 2 7/8"DP)
m
8000
Φ88.9mm( 3 1/2"DP)
m
6500
Φ114mm(4 1/2"DP)
m
5000
Drilling depth
m
3000
Rated hook load
kN
1500
Max. hook load
kN
1700
Engine model

CAT C15 ACERT AIII*2
Engine power
KW(hp)
403(540)*2
transmission

Allison M5610HR*2
chasssis driving form

14*8
Approach/departure

33°/17°
Min. ground clearance
mm
285
Derrick height
m
38
Derrick type

front opened, double section hydraulic lifting, flexible mast
Valid rope number

10(6*5)
hoist rope diameter
mm
Φ29
Transportation dimensions(length x with x height)
m
22.2×3.1×4.45
Total weight
kg
76000
Drum

Single / double drum
Main drum assist brake system

Air control disk type brake
